CCR Pixel MegaTree Kit - 16 Strips/Ribbons / 800 Pixels / 2,400 DMX Channels / Ready2Run Assembled / High Output - 700w

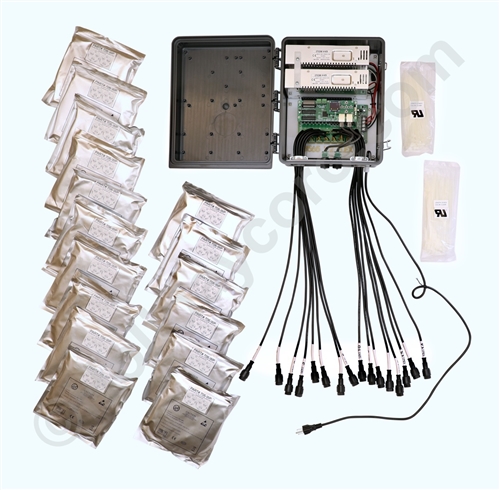

PRODUCT PHOTO: CCR Pixel MegaTree Kit - 16 Strips/Ribbons / 800 Pixels / 2,400 DMX Channels / Ready2Run Assembled / High Output - 700w

Additional Photos:
Our Price: $849.95



Availability / Ships: Same Day, Sporadically up to 3 days (Delivery Time Information)
Product Code: 815


The following items are included with this product:

CPU Type and Options

Click Here For Detailed Comparison of CPU Functions [Add $999.99]

AlphaPix Evolution CPU [Add $109.99]
   - Network Switch, e1.31/sACN/No FM/Audio Output

HinksPix Pro V2 CPU [Add $195.95]
   - 48 Ports, 24k Pixels, Network Switch, e1.31/sACN/ArtNet/DDP, Advanced Features, Play-On-Controller Upload (Requires SD Card), Line Level Audio Output, Wi-Fi

HinksPix Pro CPU V2 + 32gb SD Card [Add $209.95]
   - 48 Ports, 24k Pixels, Network Switch, e1.31/sACN/ArtNet/DDP, Advanced Features, Play-On-Controller Upload, Line Level Audio Output, Wi-Fi

HinksPix Pro V3 CPU [Add $269.95]
   - 80 Ports (physical cable limits may apply), 81k Pixels, Network Switch, e1.31/sACN/ArtNet/DDP, Advanced Features, Play-On-Controller Upload (Requires SD Card), Line Level Audio Output, Wi-Fi

HinksPix Pro CPU V3 + 32gb SD Card [Add $279.95]
   - 80 Ports (physical cable limits may apply), 81k Pixels, Network Switch, e1.31/sACN/ArtNet/DDP, Advanced Features, Play-On-Controller Upload, Line Level Audio Output, Wi-Fi, Compatible SD Card, SD Card to USB A Adapter

Pre-Configured Input Voltage & Plug Type

110 / 120v @ 60Hz Input / Type B Plug (United States, Canada, Mexico, Others)
220 / 240v @ 50Hz Input / Type I Plug (Australia, NZ, China)
220 / 240v @ 50Hz Input / Type F Plug (Most of Europe and Russia)
220 / 240v @ 50Hz Input / Type G Plug (United Kingdom / Ireland / Singapore)
220 / 240v @ 50Hz Input / Type B Plug (United States, Canada, Mexico, Others)
    Click here for voltage and plug details
Setup and Troubleshooting Assistance

Regular Support (E-Mail Only) - Included with controller purchase [No Additional Cost]
Priority Support (Phone & Remote Control) - Purchased Separately [$69.99 to $159.99]
OPTIONAL: Click here for detailed information about support levels, response times and support for non-HolidayCoro products (opens in a new tab)
Controller Warranty Period

AlphaPix / HinksPix Controller - 30 Day Factory Defects Only [No Additional Cost]
AlphaPix / HinksPix Controller - 1 Year Warranty (Ready2Run Assembled) [Add $15.99]
AlphaPix / HinksPix Controller - 3 Year Warranty (Ready2Run Assembled) [Add $29.99]
Click here for detailed information about our warranty policy (opens in new tab)
Click here for information on why we offer warranty options (opens in new tab)
  - Warranty period cannot be adjusted after purchase
 - Controller hardware is identical for all warranty levels
Select the Ribbon Mounting Method

I'll Mount Using PVC, EMT or Other DIY Method
Pixel Ribbon Mounting Kit [Add $108.95]
    - Designed for 16 Strip, 180 Degree Ribbon Based MegaTrees, includes:
       * 16 Strip Topper (for use with Extreme Strip)
       * 320 Feet of Extreme Strip
       * 16 of Bottom Strain Reliefs
       * 200 Zip Ties
       * This product not for use with pixel nodes, ribbon only

Output Board #2 (Optional)

No Expansion Board #2

1 of Flex 4 Cable Output / Long Range Differential Expansion Board [Add $49.95]
   - One Long Range board can handle up to 4 to 16 Long Range Differential Receivers
   - Long Range Receivers require power separate of Expansion Board
   - Only one Power supply is required for up to 3 Long Range Expansion Boards
   - Ready2Run Receivers and CAT5 Cable Sold Separately - Purchase Here

CAT5 Ethernet and Long Range Data Signal Cable

No Data Cable - I'll Provide My Own
10 Foot / 3 Meters Green CAT5 Data Cable for Data Signal [Add $3.49]
25 Foot / 7.6 Meter Green CAT5 Data Cable for Data Signal [Add $5.49]
50 Foot / 15 Meter Green CAT5 Data Cable for Data Signal [Add $8.99]
100 Foot / 30 Meter Green CAT5 Data Cable for Data Signal [Add $18.99]
200 Foot / 60 Meter Green CAT5 Data Cable for Data Signal [Add $42.99]
Click Here For Complete CAT5 List and Accessories

Qty:
[Product Description Page]

Have a location that requires higher output such as a mall, large street light or other high levels of ambient light?  This high output kit is just the ticket!
Product Features

This pixel MegaTree includes a completely assembled controller, extension cables and pre-wired lights. If the following tree doesn't meet your requirements, see our other selections of pre-designed Pixel MegaTrees.


180 Degrees of Coverage
Ideal Viewing Distance From Audience
25+ Feet
Items Suitable for Display
Scrolling text, singing faces,
animated graphics
Ease of Sequencing Easy - Uses Commonly Available
50 x 16 "CCR' Sequences - see this site
Pixel Counts
Total Pixels per Tree 800
Total RGB LEDs per Tree 2,400
Vertical Sections / Strings 16
Width - Top of Tree Varies by Installation
Pixel Spacing - Top (Horizontal / Pixel-to-Pixel) Varies by Installation
Pixel Spacing - Bottom (Horizontal / Pixel-to-Pixel) Varies by Installation
General
Power Injection Required / Cables per Strand
No / One Cable
Type of pixel used
30 LED / 10 IC-Pixel Per Meter (39")
Assembly
Controller - Pre-wired with power and cables
Fully Assembled
Lights - Pre-wired with waterproof connections
Fully Assembled
Overall erection time for entire tree
(with assembled hardware)
 Usually
60 to 240 Minutes
DIY Customer assembly time
(excludes erection time) 		2 Hours (Experienced)
3 to 6 Hours (Novice)
Additional Required Items (Sourced by Customer)
Mounting Hardware Varies by Installation
8 Inch to 12 Inch Galvanized Nail / Stakes
16 Typically
Tent Stake / Re-Bar or Similar
(Depends on local soil and ground conditions) 		Varies by Installation
Guy Wires or Rope Not Required or Varies
Sequencing Software Works with 100% of all Holiday Sequencing
See compatible software
Computer / Show PC Requires PC with Ethernet
network port (nearly all have this)

Type and power of PC
depends on sequencing software
selected by customer.
