Product Features
- General Information

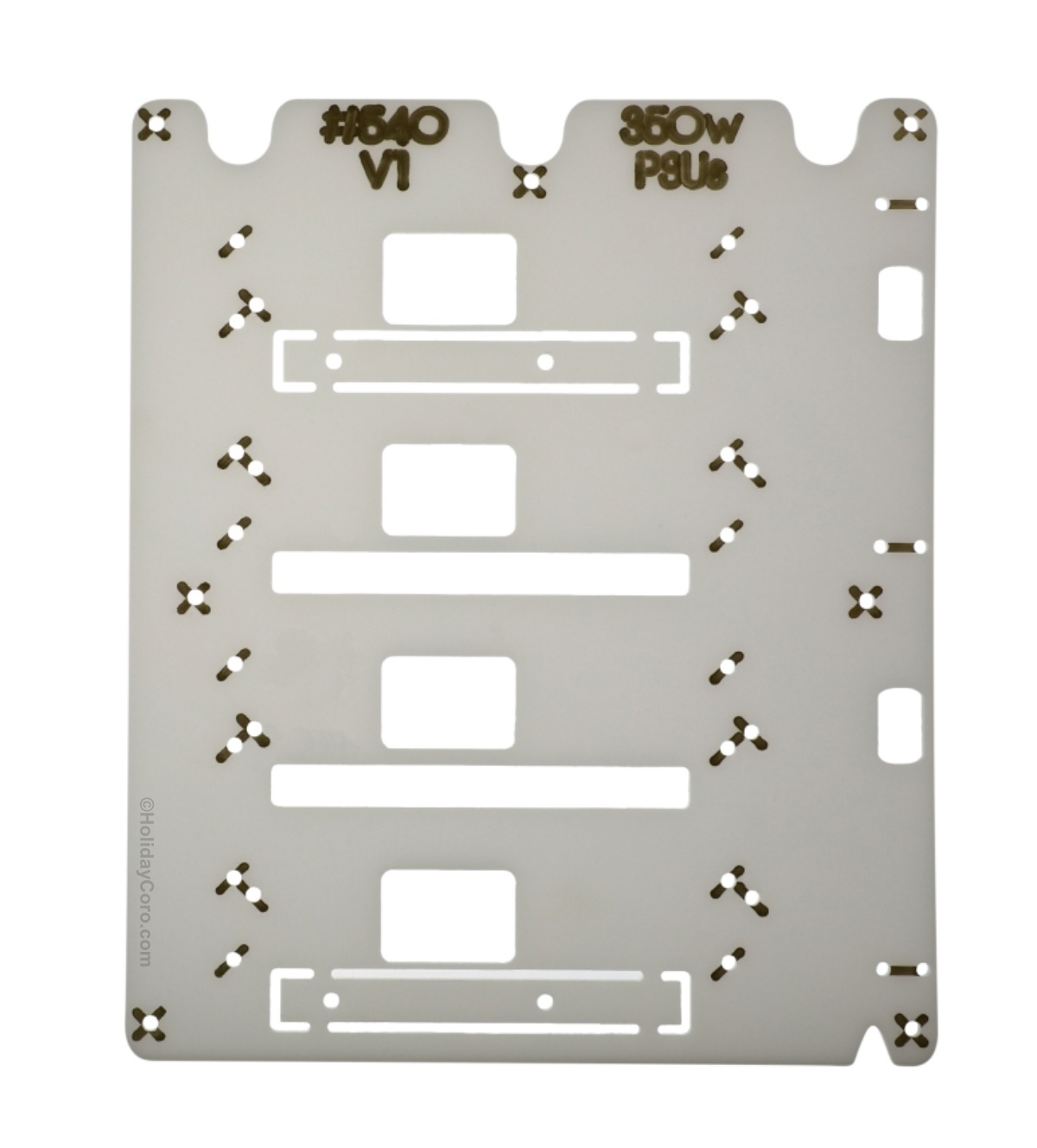

- Mounting plate for the HC-2500 to mount common 300-350 Watt power supplies
- Door Mounting
- Base / Bottom Mounting
- 2 Power Supplies Flat
- 1 Power Supply Flat, 2 Power Supplies Vertical
- 1 to 4 Power Supplies Vertical
- NOTE: When mounting power supplies vertically on the base / bottom, no items may be mounted to the door due to clearance issues
- NOTE: Does not include end-plate if used with open-bottom HC-2500 enclosure, only the mounting plate and screws are included
- Includes all mounting screws for up to 4 power supplies
- Includes stabilizing brackets for up to 4 power supplies (vertical mount only)
- When wiring multiple power supplies to one cord, use 18 AWG or heavier wire to link each of the screw terminals
- CAUTION: UL requires a minimum of 18 AWG wire for power input. If using non-HolidayCoro power input wires with mutliple power supplies you must confirm the gauge is 18 AWG or lower (thicker)
- Note that when mounting power supplies vertically on the two bottom locations, it is not possible to also install a fan in the door location.
- Power input wiring
- Multiple power supplies can share a single power input cable. The list below provides details on typical power consumption and the number of cables required:
# of 350 Watt
Power Supplies
|
Input Voltage
|
Number of Power
Input Cables Required
(12 amp plug)
|
Estimated
Power Draw
|
|
1
|
120 Volts AC
|
1
|
2.9 amps
|
|
2
|
120 Volts AC
|
1
|
5.8 amps
|
|
3
|
120 Volts AC
|
1
|
8.7 amps
|
|
4
|
120 Volts AC
|
1
|
11.6 anps
|
|
1
|
240 Volts AC
|
1
|
1.4 amps
|
|
2
|
240 Volts AC
|
1
|
2.9 amps
|
|
3
|
240 Volts AC
|
1
|
4.3 amps
|
|
4
|
240 Volts AC
|
1
|
5.8 amps
|
|
|
|
